Conventional Fire Alarm System consists of zones type conventional fire alarm control panel, repeater floor displayer panel, smoke detector, UV flame detector, heat detector, gas detector, smoke and heat detector.
conventional fire alarm-1.JPG (100.82 KiB) Viewed 16367 times

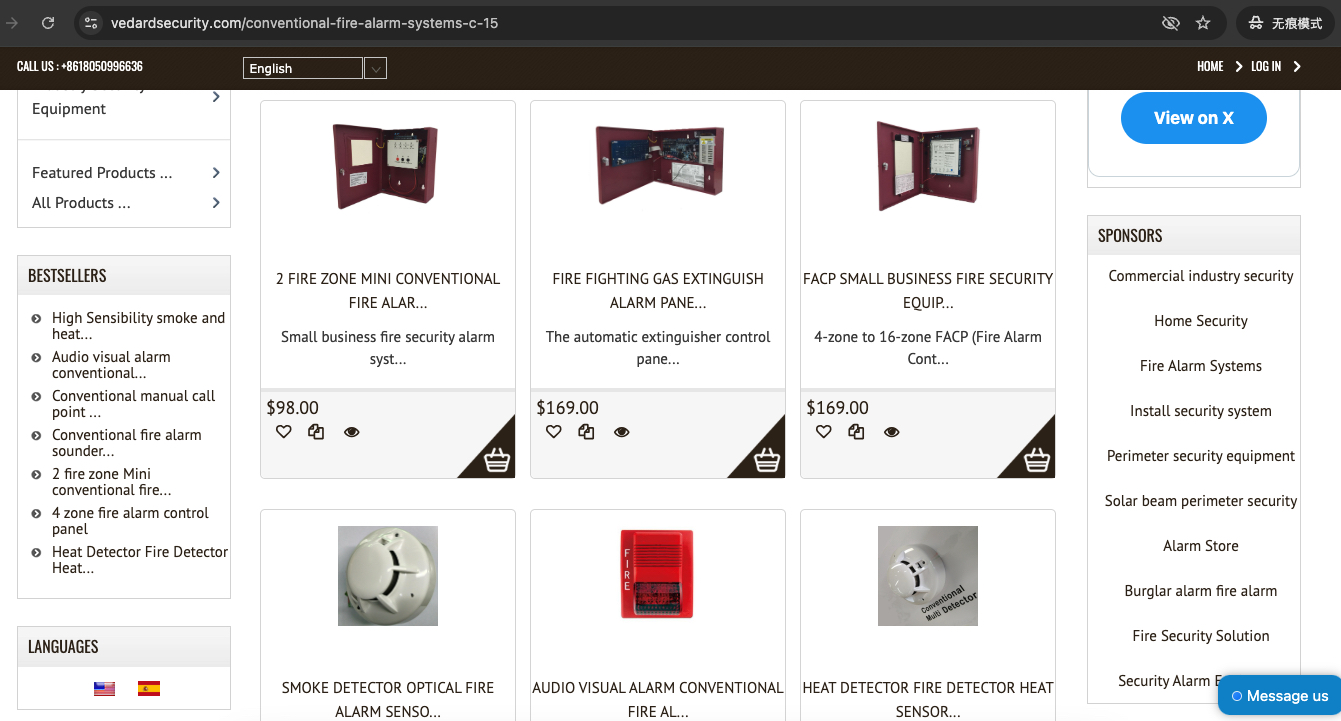

shop conventional fire alarm component
Conventional fire alarm system.jpg (442.2 KiB) Viewed 1018 times

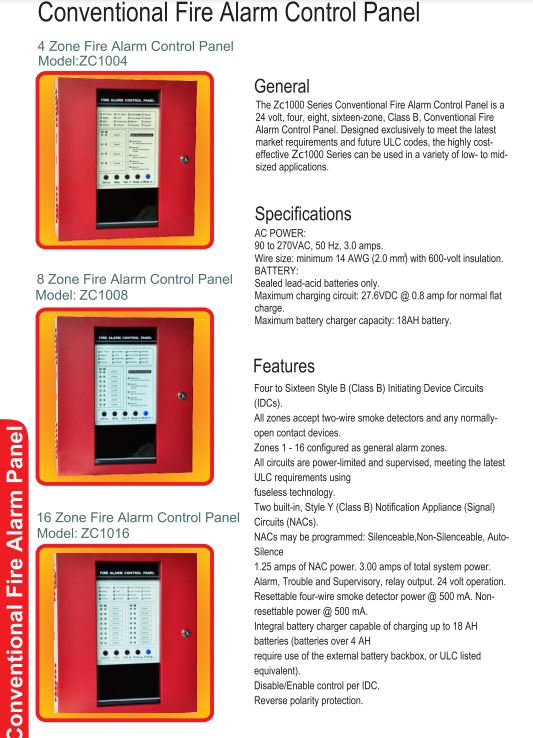

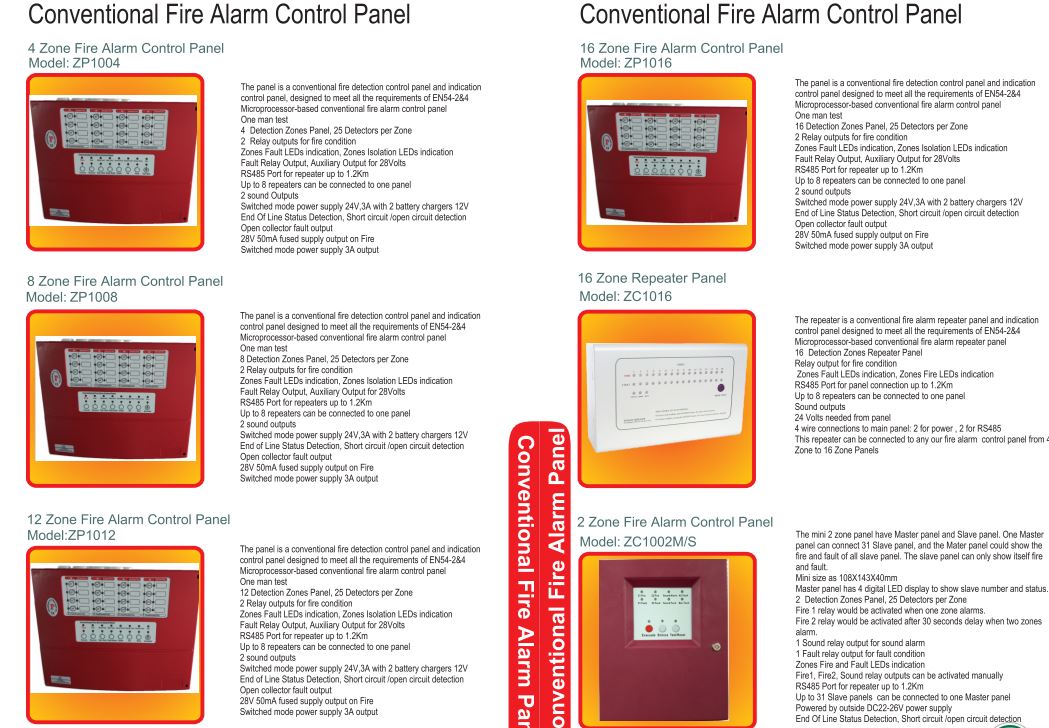

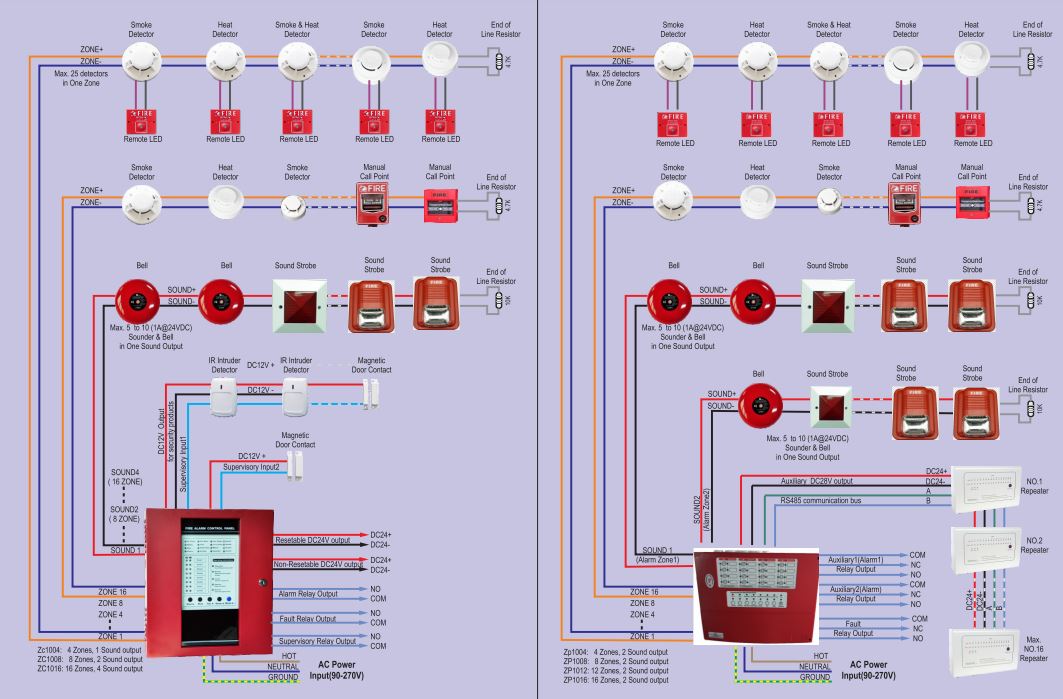

Conventional fire detection and fire indication panel which has 4 zones, 8 zones or 16 zones. Each zone can equip 25 detectors. You can set one floor or one corner area as one zone. There is floor repeater to show fire floor.
conventional fire alarm-3.JPG (172.07 KiB) Viewed 16366 times
Re: Conventional Fire Alarm System
Posted: Mon Feb 25, 2019 12:38 pm
by vedard

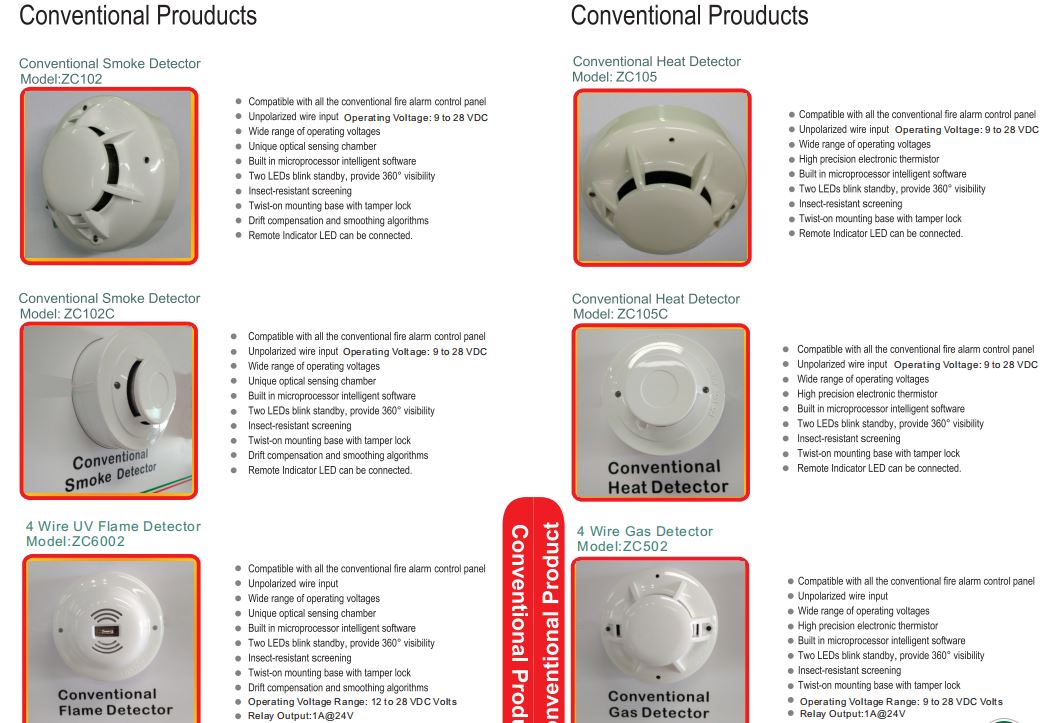

Smoke heat detector is the basic fire detection device. Compatible with all the conventional fire alarm control panel. Unpolarized wire input operation voltage 9-28VDC. Unique optical sensing chamber. Built-in microprocessor intelligent software. Insect resistant screening.
conventional fire alarm-4.JPG (140.47 KiB) Viewed 16366 times
Wire fire manual call point with home security alarm panel
Posted: Mon Feb 25, 2019 12:40 pm
by vedard

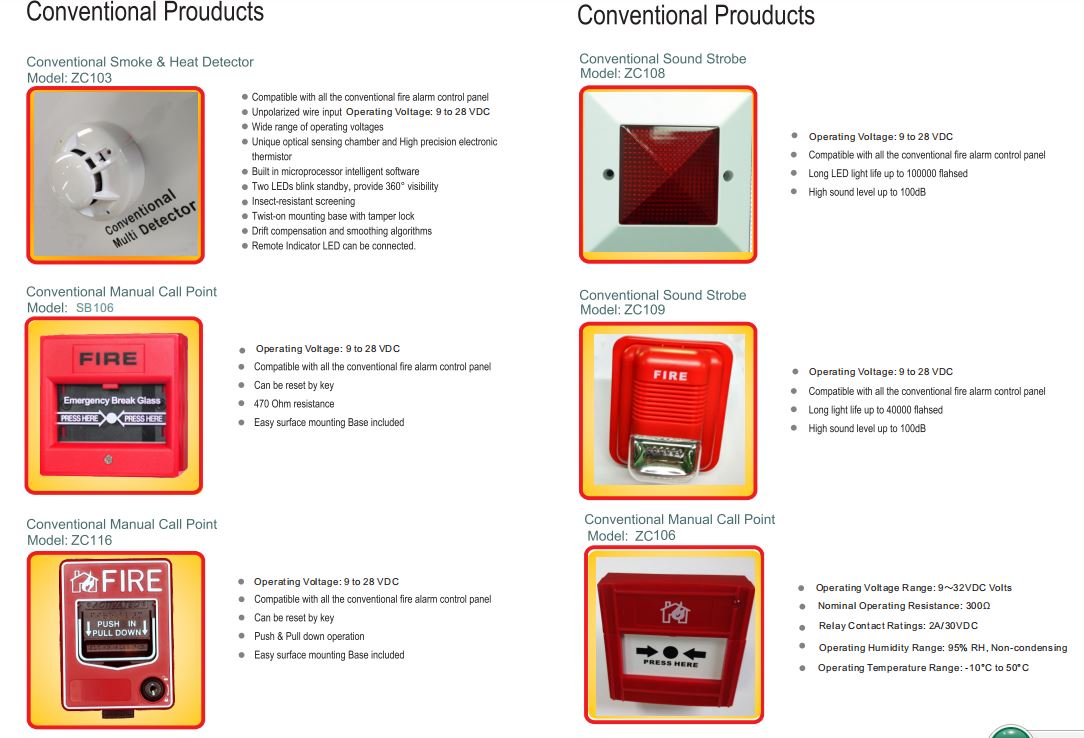

Compatible with all the conventional fire alarm control panel smoke heat detector, sounder strobe, manual call point.
conventional fire alarm-5.JPG (118.12 KiB) Viewed 16366 times

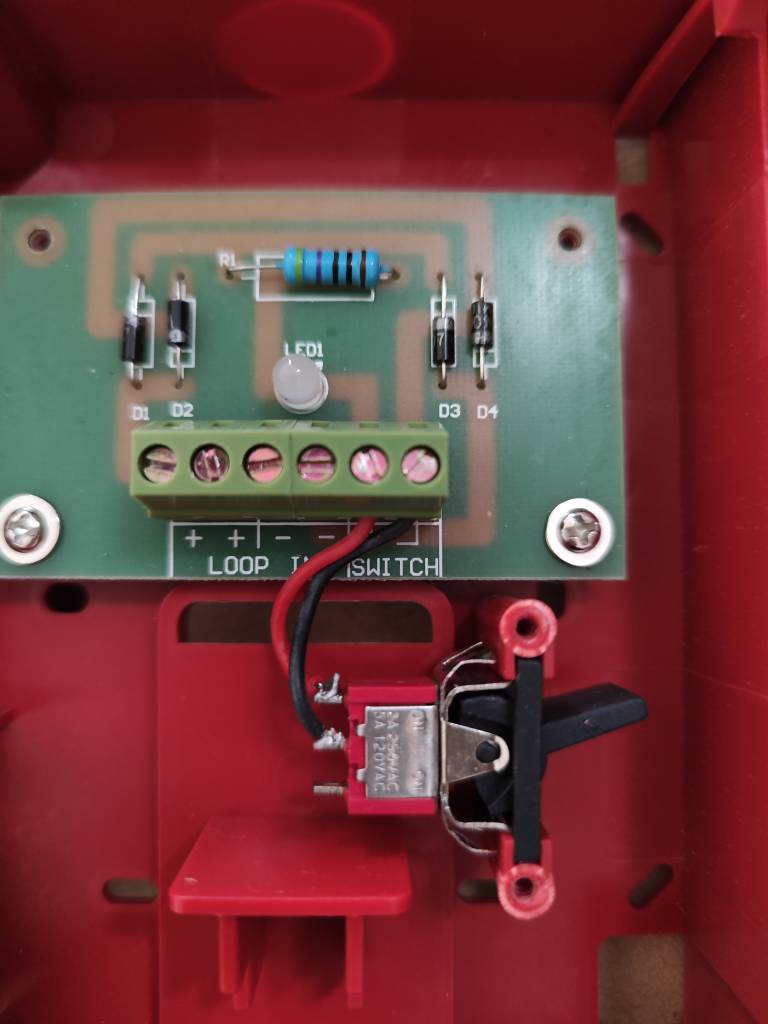

For commercial and industry security system, you can add fire manual call point at public area. When fire occurs, you can pull down the button to report fire. Use the two switch terminal to connect it with alarm panel.
