CMS平台使用说明

一．启动软件
安装好CMS服务器软件后，服务器桌面将会有一个“小地球”的图标

双击运行之后即可！
二.客户端软件注册控件
第一次使用客户端时，需打开CMS3.2客户端，根目录，双击运行reg.bat文件即可！
三．新增地区
打开CMS3.2软件图标 输入账号 密码 服务器IP,点击“小锁”图标登入.
管理员默认账号:admin 密码: 888888

在资料管理-区域管理中 右键 新增区域.

美安CMS服务器可分4级管理
1国家（超级管理员） 可管理国家下面所有用户
2省级（区域用户） 可管理省份下面所有用户
3市级（运营用户） 可管理市下面所有用户
4 乡镇及公司 等(多机用户 接警用户)可查看和接警乡镇及公司下面所有用户
四.创建区域或运营用户
进入管理权限后点击 用户管理—运营用户-添加

五． 新增普通用户（即设备上所填的用户） 退出管理员，登入运营用户


注：普通用户必须由运营用户来新增管理，管理员和区域用户都无法直接管理普通用户。
六 通过平台控制前端设备
在目录树下---右键点击前端的设备---即可弹出管理菜单 如下图：

七:接警中心-接警
当设备发生报警时，前端软件会弹出 文字报警信息及图像，接警人员，需双击该条警情信息，对其进行接警等处理，并及时通知相关人员处理该警情
八．接警软件相关设置
通过点击-右三角型的图标 可对接警软件进行相关的的设置，声音 颜色 以及多屏显示等

CMS Platform Instructions
one. start software
After installing the CMS server software, there will be a "small globe" icon on the server desktop
Just double-click to run it!
2. Client software registration control
When using the client for the first time, you need to open the CMS3.2 client, the root directory, double-click to run the reg.bat file!
three. new area
Open the CMS3.2 software icon, enter the account and password server IP, and click the "small lock" icon to log in.
Administrator default account: admin Password: 888888
In the data management-area management, right-click to add an area.

Market America CMS server can be divided into 4 levels of management
1 country (super administrator) can manage all users under the country
2Provincial (regional users) can manage all users under the province
3 City level (operating users) can manage all users under the city
4 Townships and companies (multi-machine users, alarm receiving users) can view and receive alarms from all users under the township and company
4. Create a region or operate a user
After entering the management authority, click User Management - Operation User - Add

five. Add an ordinary user (that is, the user filled in on the device) Log out of the administrator and log in to the operating user
Note: Ordinary users must be added and managed by operational users, neither administrators nor regional users can directly manage ordinary users.
Six control the front-end equipment through the platform
Under the directory tree---right-click the front-end device---the management menu will pop up, as shown in the figure below:

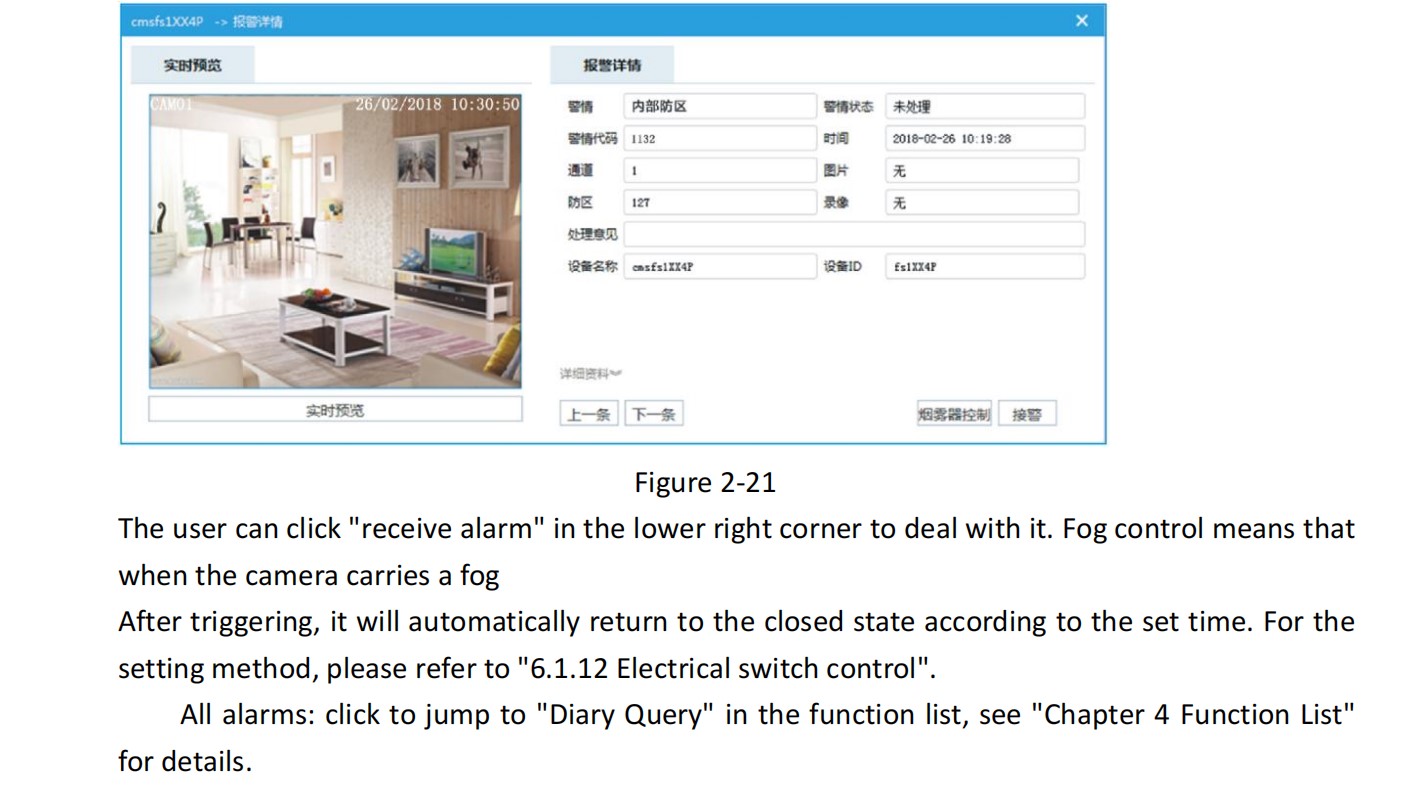

Seven: Alarm Center - Alarm
When an alarm occurs on the device, the front-end software will pop up a text alarm message and an image, and the person receiving the alarm needs to double-click the alarm message to receive the alarm and other processing, and promptly notify the relevant personnel to deal with the alarm
eight. Alarm software related settings
By clicking the right triangle icon, you can set the alarm software, sound, color and multi-screen display, etc.

With the CMS, you can manage the devices and users. You can remote monitor all business security. Alarm information and video alarm will pop up when alarm goes out.
With App or PC software, the user can login to monitor the assigned alarm system.

Please be noted that this instruction is for EAVS series alarm host such as EAVS-2506 which as built-in NVR and support video recording and support all types cameras with ONVIF protocol.
For other alarm host such as FC-7664pro, only meian tech protocol camera can be added and no recording supported. Only real time viewing is available.
Free CMS for complete security service local and remote security monitoring.
Complete PC software for monitoring and instruction.
Welcome to post your question or contact us for details.
